Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance

Name: Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC6205621 Compliance
Brand: CALIN
Price: 35 USD

Cheap Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance for sale

Model Number : CA168 -SD51

Brand Name : CALIN

Place of Origin : Guangdong, China

MOQ : 1

Price : $35-40

Accuracy Class : 1.0

Max Current : 60 A

Measuring Energy Range : 10(100)A

Rated Current : 5 A

Basic Current : 5 A

Operating Temperature : -25℃～70℃

Output Voltage : 220v/230v/240v

Nominal Voltage : 220/230/240 V

Limited Voltage : 70%~120%Un

Nominal Frequency : 50-60Hz+5%

Starting Current : 0.4%lb

Active Energy Constant : 1000imp/kWh

Power Consumption Voltage : <2W <8VA

Power Consumption Current : <1VA

Storage Temperature : -40℃ to+85℃

Contact Now

Product Description

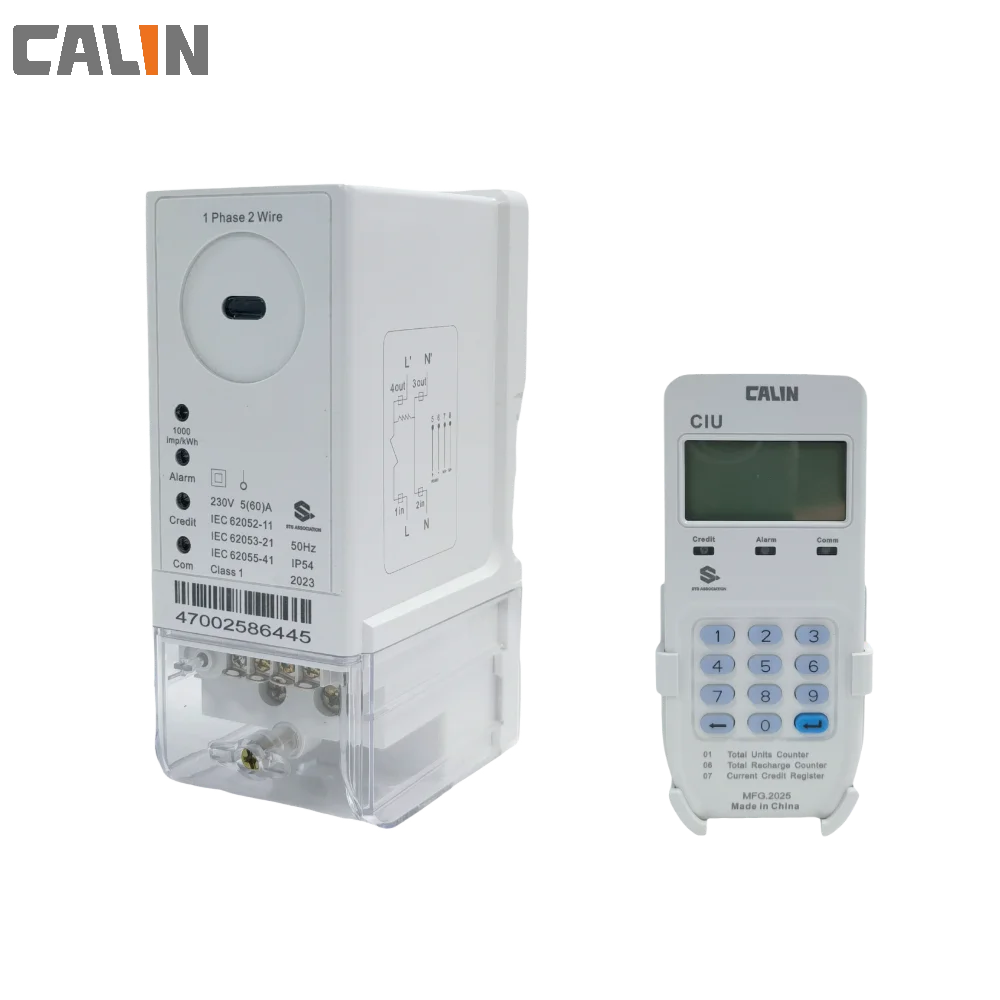

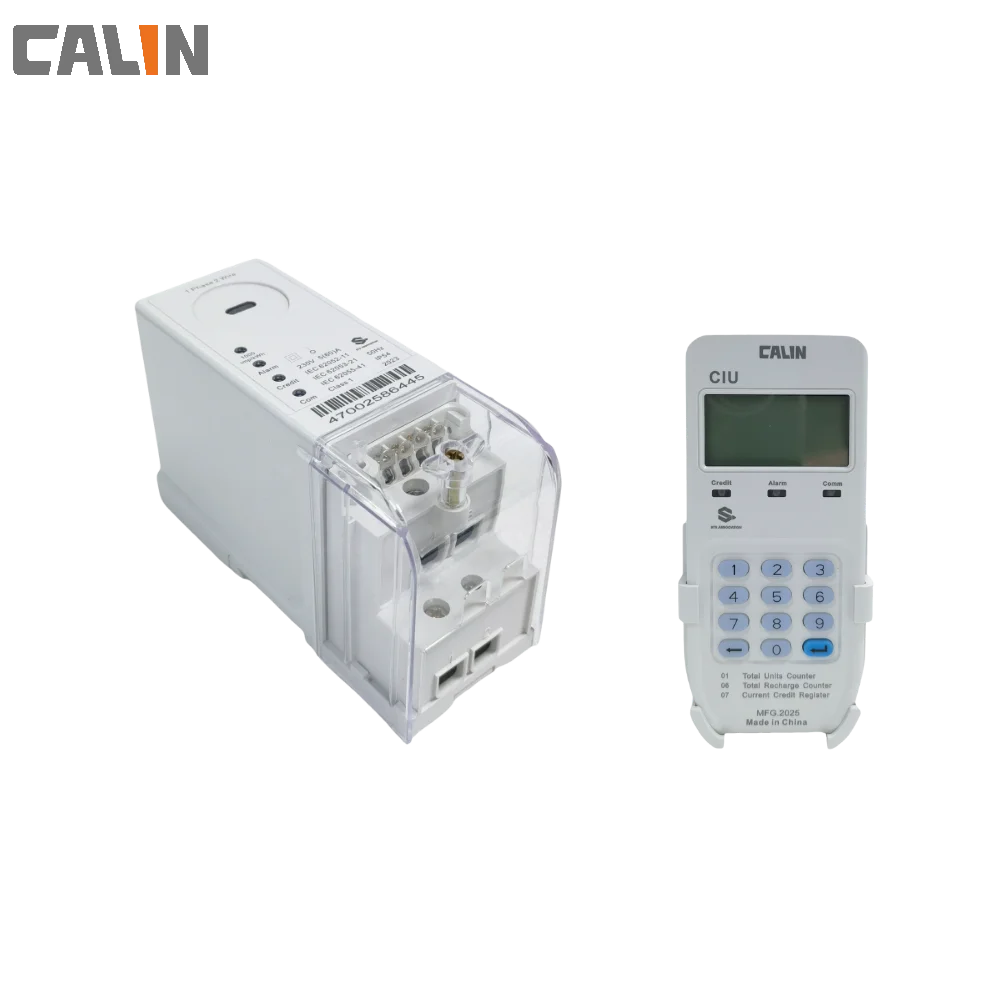

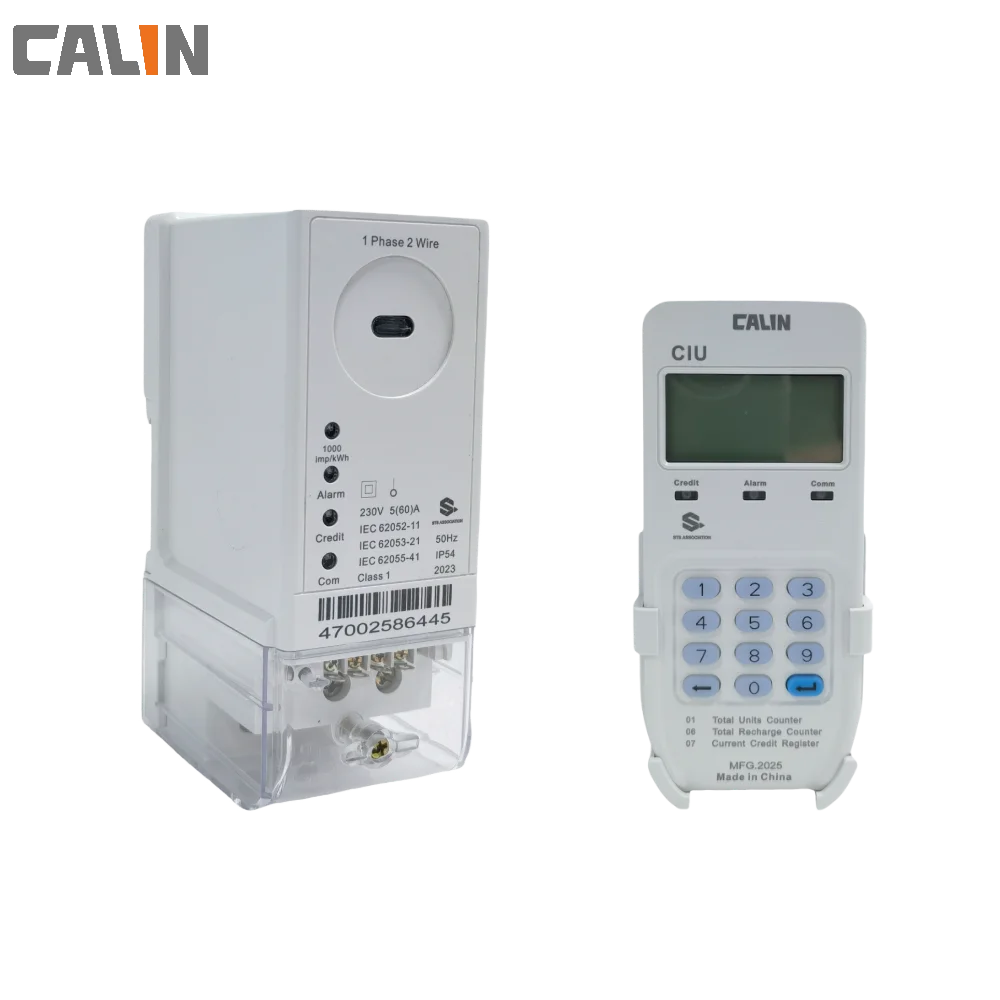

Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance

Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features .

Key Benefits

a) Current loop , RF /LoRa communication (On request)
b) Time of Use (TOU) , multi-tariff, holiday setting
c) Easy connection to User Interface Unit (UIU) for split type applications
d) 15 years of lifespan designed
e) Balance alarm can be set by user according to his own need

Technical Parameters
Nominal voltage Un	220/230/240 V
Limited voltage	70%~120%Un
Nominal frequency fn	50-60Hz+5%
Basic current(Ib)	5A
Maximum current(Imax)	60A
Starting current(Ist)	0.4%lb
Active energy constant	1000imp/kWh
Accuracy as Active energy to IEC62053‐21	Class1.0
Power consumption in Voltage circuit	<2W <8VA
Power consumption in current circuit	<1VA
Operating temperature	-25℃ to+70℃
Storage temperature	-40℃ to+85℃

Main Features

a) Detection of significant reverse energy (SRE)
b) IEC62056-21 compliant optical & RS485 port allowing for easy data interrogation
c) Disconnects on overload and no credit
d) Preventing electricity-stolen function

Certifications

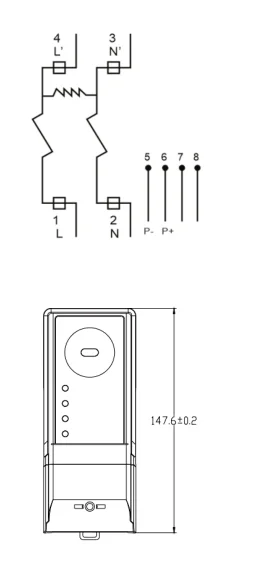

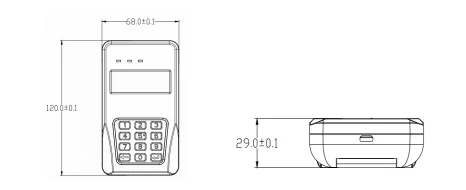

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Three phase keypad prepaid energy meter

91.8% Response Rate

Din Rail Prepaid energy meter

91.8% Response Rate

Split type Prepaid energy meter

91.8% Response Rate

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	18kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
